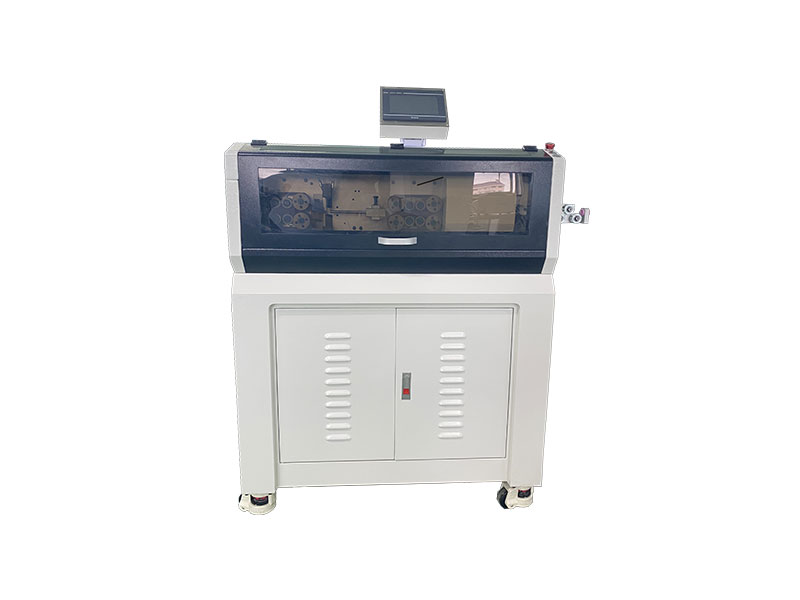

產品相冊：
特點說明（Characteristic description)
1、這款機器主要是有旋切功能，能剝多層且切口平齊,旋剝還是直剝方式可任意設定，刀架有2組刀具可移動，可以無需更換刀具任意選擇，從而達到優品的效果！
1, this machine is mainly equipped with function of rotary cutting, can peel multi-layer and cut flat, rotary stripping or direct stripping can be set at will, the knife rest has 2 sets of blades can be moved, no need to change , Choose any to achieve high efficiency and superior quality!
機型規格Model specification
型號 Model | HC-608KZ HC-608KZ |
外形尺寸 Dimension | L910*W690*H490mm L910*W690*H490mm |
重量 Weight | 約95KG about 95KG |
顯示方式 Display | 中英文，觸摸屏操作 Chinese and English, touch screen operation |
電源 Power | 220V／2000W 220V／2000W |
切割長度 cutting length | 10-100000MM 10-100000MM |
前后端剝皮長度 front/rear end stripping length | 前端：1-300，后端1-180MM front end :1-300mm Rear end:1-180mm |
剝線范圍 stripping range | 4-25平方mm2 4 自動調節線芯，不同規格線纜無需更換刀具4-25mm2 Automatic adjustment of the core,ifferent specifications of the cable without changing the blade |
可剝層次 peel level | 1-8層 1-8layers |
導線類型 cable type | 新能源線、電纜線、同軸線、電力線等 New energy cable, cable , coaxial cable , power line, etc |
切割深度精度 Cutting depth accuracy | 0.01MM |
切斷精度 cutting accuracy | 變動范圍：1mm+切斷長度x0.2%以下 Range of fluctuation:1mm+ cutting length x0.2% below |
導管直徑 conduit diameter | 6-14MM(旋刀導管6-12mm) 6-14MM(conduit of rotaty blade6-12mm) |
驅動方式 driving way | 伺服驅動 servo drive |
切剝方式 cut strip way | 移動刀架切剝+旋切 Move the knife rest to peel + srotary cutting |
刀具 Blade | 4片進口高速鋼,2片鎢鋼 4pcs Imported high speed steel; 2pcs tungsten steel |
生產率（次／小時） Productivity(pcs/h) | 依作業線總長及作業程序不同，最少可達300-500PCS/小時 Up to 300-500pcs/hour, depending on the length of the line and operating procedures |
送線方式 wire feeding way | 皮帶送線，線纜無壓印無刮痕！ Belt feed line, cable no impression no scratch! |
